The 5D Thermal Aerosol Generator is designed for operators who require a wide range of aerosol output concentrations to perform leak tests on smaller clean air cabinets through cleanroom air handling systems. The output is generally much higher compared to the capacity of a cold aerosol generator like the 4B or 6D.
Because of the high temperatures the aerosol cannot be generated by compressed air but an inert gas is required like nitrogen or carbon dioxide.
Cost-Effective

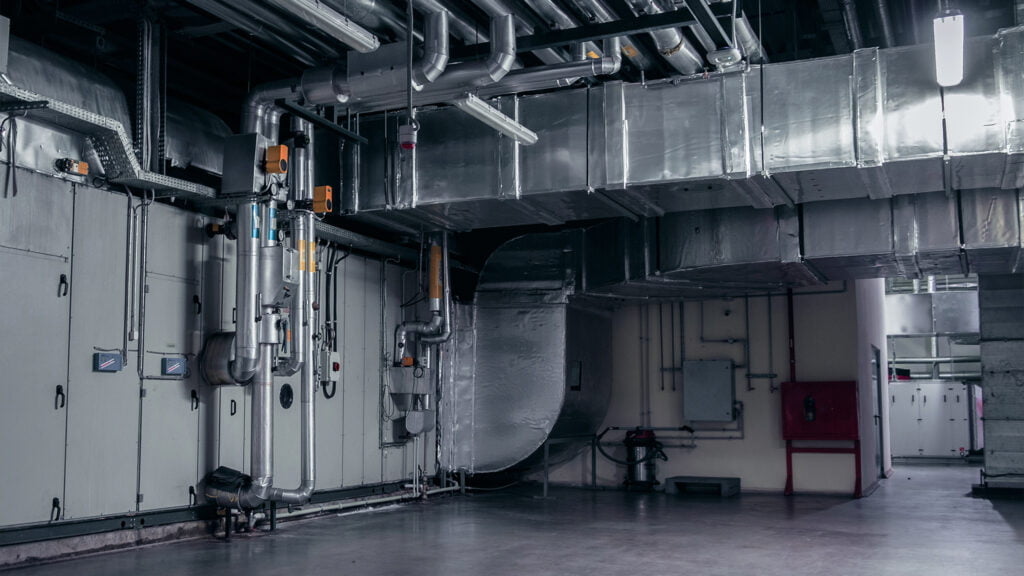

Save time and money in the most demanding multi-filter cleanroom installations. In high-volume HEPA and ULPA air flow environments, the 5D can significantly reduce the time it takes to conduct filter leak test scans, generating aerosol concentrations that can challenge the largest Air Handling Unit (AHU) configurations. With 1- to 2-minute warmup and cool-down times, begin testing high-flow systems without waiting, and be ready to store and move the unit minutes after the job is complete.

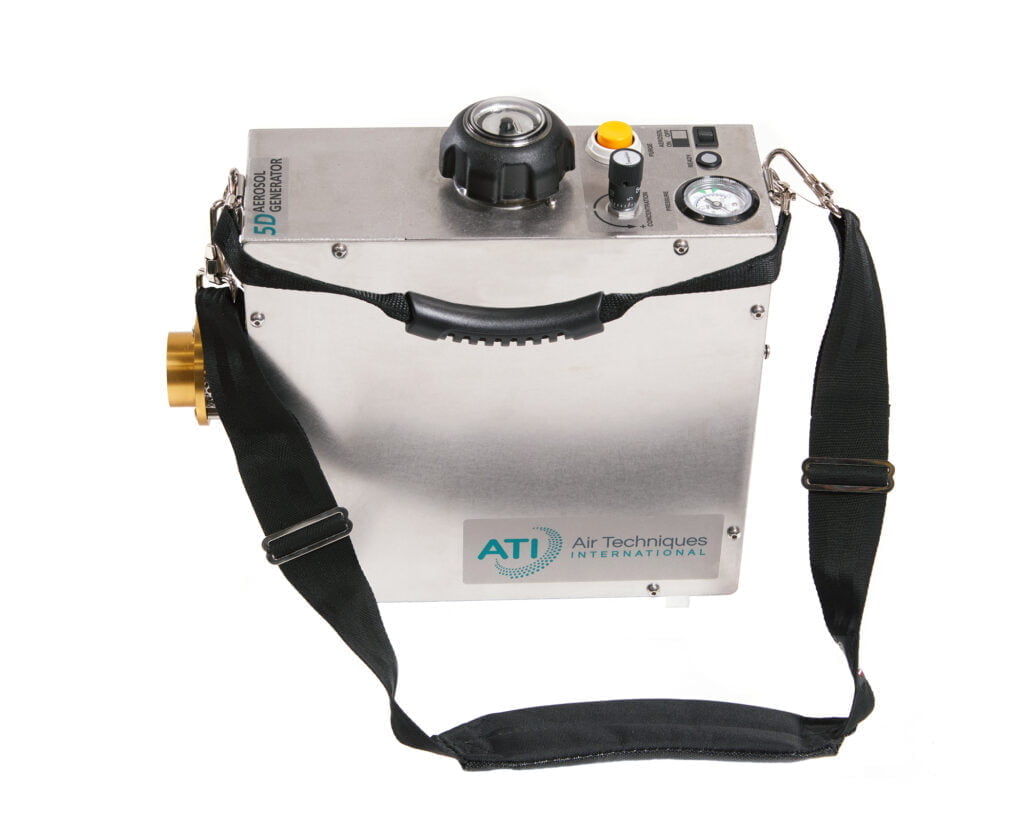

Rugged Portability
The 5D components are housed in a stainless-steel enclosure designed to withstand the rigors of portable filtration-system certification. Its lightweight, slim profile and supplied hand and shoulder straps make it an everyday, portable aerosol generator.
Flexible
Generating the widest aerosol concentration range available, the 5D accommodates both high- and low-flow environments, from cabinets to the most demanding cleanroom installations. And with flex-fuel capability, the 5D can use the following reagents, including DOP (DEHP), PAO-4, DOS (DEHS), Ondina, or mineral oil.
Safe and Reliable
An innovative design minimizing system thermal requirements provides a faster, simpler, and safer alternative to other available solutions. The 5D is certified to comply with all applicable electrical and safety requirements, including CE and RoHS-2 standards.
Applications
Pharmaceutical Manufacturers
Hospital operating theatres
HVAC qualification companies
Filter manufacturers
The 5D Generator Provides:
Fast operation with a warm-up time of only 60 seconds
Widest range of System Flow Rates 850 – 120.000 m3/hr
Rugged Portability
Safe and reliable Operation
Flex-Fuel Capacity
Lightweight and rugged, ideal for remote locations
Optional Accessories
Heavy Duty Transport case with polyurethane wheels and a retractable handle allow for easy transport
Hose Adapter
The 5D provides:
High Aerosol Output
Widest Range of System Flow Rates
One Minute Warm-up Time
Rugged Portability
Safe and reliable Operation
